North Bay
exmmc100rearjbrev3

EXM MC100_REAR_JB KOVATERA WHT MODIFIEDBOX5412 ESCH060604NOIP REV3

Manufacturer:EXM
Manufacturer #:MC100_REAR_JB

Description

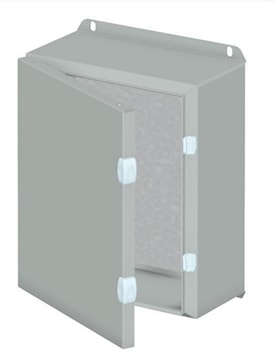

The 5412 ESCH is a wall mounted enclosure used in areas where it may be subject water, hosing, dust, dirt and oil splashing. A quality seamless gasket ensures a complete and durable watertight seal. The door can be easily removed and features EXM's exclusive externally-mounted 1/4 turn locking mechanism that ensures a positive closing. Enclosure is finished with polyester powder paint. Inner panel is galvanized. External mounting holes are pierced through the lip on the top & bottom of the enclosure.

Specifications

Brand Name EXM Manufacturing Item Name JIC Enclosure
Type Reverse 3, Single Lock, Single Door, Modified Width 6 in
Depth 6 in Height 4 in
Cover Type Hinged Gauge 16 ga
NEMA Rating NEMA/EEMAC 4, 12 Series 5412 ESCH
Mounting Type Wall Material Steel
Finish Polyester Powder Painted, Galvanized Color ANSI/ASA 61 Smooth Gray
Standards CSA Certified, UL Listed Application For Indoor/Outdoor to Protect the Enclosed Controls from Dust, Dirt Oil and Water Splashing
