EXM KVT2020-UT99RJB 5412ESCH080604 REV#0KOVATERA

Manufacturer:EXM
Manufacturer #:KVT2020-UT99RJB

Description

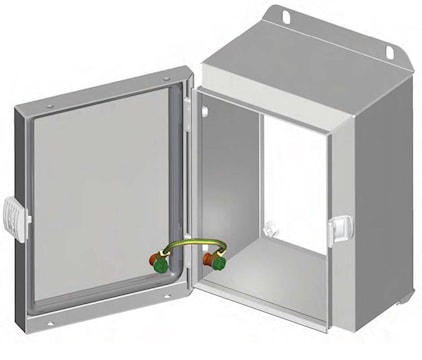

The 5412 ESCH are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. The 5412 ESCH are made from quality 16 GA steel, with corner seams continuously welded. The opening has a curled lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. A high quality robotically poured-in-place seamless gasket ensures a complete and durable water tight seal. The enclosures feature die cast hinges, which are bound to the cover by an exclusive concealed hinge pin system. The covers are interchangeable and can be removed by unfastening the antivibration lock nuts.

Specifications

Brand Name EXM Manufacturing Item Name JIC Enclosure
Width 6 in Depth 4.312 in
Height 8 in Cover Type Standard Door
Gauge 16 ga NEMA Rating NEMA 4, 12, IP66
Series 5412 ESCH Mounting Type Wall
Material Hot Rolled Pickled and Oiled Steel Finish Smooth
Color ASA 61 Gray Standards CSA Certified, EEMAC Type, UL Listed
Application For Indoor/Outdoor to Protect the Enclosed Controls from Dust, Dirt Oil and Water Splashing
