exm5412esspch121105

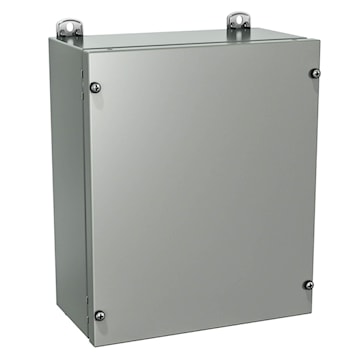

EXM 5412ESSPCH121105 Enclosure Steel NEMA 4X, IP66 11 in H x 12 in W x 5 in D ANSI/ASA 61 Gray Body and White Panel

Manufacturer:EXM
Manufacturer #:5412ESSPCH121105

Description

The 5412 ESSPCH is a wall mounted enclosure used in areas where corrosion problems exist or where it may be subject to water, hosing, dust, dirt or oil splashing. A quality seamless gasket ensures a complete and durable watertight seal. The door can be easily removed and features EXM's exclusive externally mounted 1/4 turn locking system that ensures a positive closing. Enclosure is finished with polyester powder paint. Inner panel is galvanized. External mounting feet are welded.

Specifications

Brand Name EXM Manufacturing Item Name Enclosure
Type 2-Lock Width 12 in
Depth 5 in Height 11 in
Cover Type Hinged, Quarter Turn Latch Gauge 14
NEMA Rating NEMA 4X, IP66 Series 5412 ESSPCH
Mounting Type Wall Material Steel
Finish Polyester Powder Color ANSI/ASA 61 Gray Body and White Panel
Standards CSA Certified, UL Listed Application For Indoor or Outdoor to Protect the Enclosed Controls from Dust, Dirt, Oil and Water Splashing
