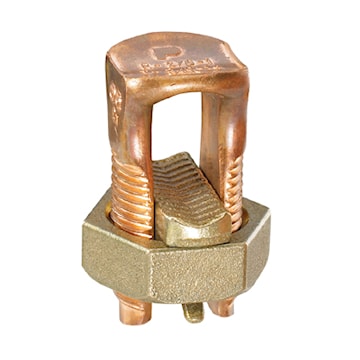

PANDUIT SBC8-C Pan-Lug™ Split Bolt Connector Extra Long Body, Mechanical 10-8 AWG Stranded Copper
pccsbc8-c
PANDUIT SBC8-C Pan-Lug™ Split Bolt Connector Extra Long Body, Mechanical 10-8 AWG Stranded Copper
Manufacturer:PANDUIT
Manufacturer #:SBC8-C
Description
Copper split bolt connectors SBC type. For use with copper code conductors. High strength copper for corrosion resistance, extra long body, range taking, true hexagonal design for correct fit.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Split Bolt Connector | Type | Extra Long Body, Mechanical |
| Main Conductor Size | 10-8 AWG Stranded | Nut Size | 0.55 in |
| Voltage Rating | 600 V | Material | Copper Alloy |
| Series | SBC | Tap Conductor Size | 10-8 AWG Stranded |
| Conductor Type | Copper | Inner Diameter | 0.14 in |
| Overall Length | 0.86 in | Finish | blank |
| Tightening Torque | 80 in-lb | Color | Copper |
| Temperature Rating | 90 °C | Dimensions | 0.39 in W |
| Standards | CSA Certified, UL 486B Listed, UL 47FL, RoHS Compliant | UPC | 074983904020 |
