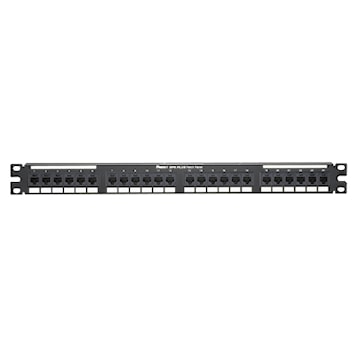

PANDUIT DP24688TGY PanNet Punchdown Patch Panel Flat 24 Ports

Manufacturer:PANDUIT
Manufacturer #:DP24688TGY
Documents Documents

Description

DP6 ™ PLUS UTP Patch panel with 24 RJ45, 8-position, 8-wire ports. Each port is 100% tested to ensure NEXT and RL performance and is individually serialized to support traceability. Utilize 110 punch down termination on back panel and includes retention cap for each port. Each port contains a universal label that is colour-coded for T568A and T568B wiring schemes. Angled versions allow for higher density applications by easily routing the patch cords to each side of the panel eliminating the need for horizontal cable management. Terminate 4-pair, 22 to 26 AWG, 100 Ohm, solid or stranded twisted pair cable.

Specifications

Brand Name Panduit Sub Brand PanNet
Item Name Punchdown Patch Panel Type Flat
Number of Ports 24 Rack Units 1
Termination Style Punchdown Material Steel
Interface Category 6, 8-Position, 8-Wire RJ45 Color Black
Dimensions 482.6 mm W x 29.6 mm D x 43.7 mm H Standards RoHS Compliant
Application NA UPC 074983037063
