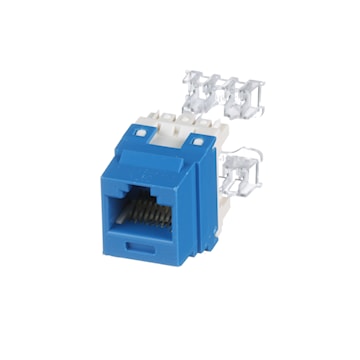

PANDUIT NK688MBU NetKey Cat 6 Jack Module RJ45, Punchdown, Unshielded 8 Positions

Manufacturer #:NK688MBU
Documents Documents


NetKey® Category 6 punchdown jack module. Category 6/Class E, 8-position keystone jack module shall terminate unshielded twisted 4 pair, 22 to 26 AWG, 100 ohm cable. Punchdown tool properly terminates each conductor for optimum performance. Universal label is colour coded T568A and T568B wiring schemes.


Brand Name Panduit Sub Brand NetKey
Item Name Cat 6 Jack Module Type RJ45, Punchdown, Unshielded
Cable Type Category 6 Number of Positions 8
Termination Style Crimp Color Blue
Cable Size 26 - 22 AWG Number of Contacts 8
Material ABS/Polycarbonate For Use With Round, Flat and Solid Core Copper Cables
Standards Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Propo Application Unshielded
UPC 074983574698
