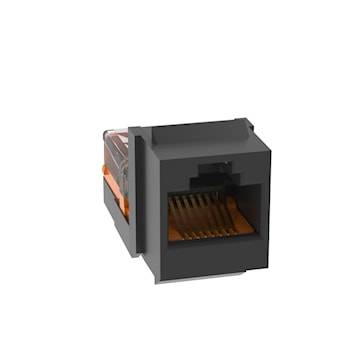

PANDUIT NK5E88MBLY NetKey Jack Module RJ-45, Unshielded, Lead Frame 8 Positions

Manufacturer #:NK5E88MBLY
Documents Documents


NetKey ® Category 5e leadframe jack module. Category 5e/class D, 8 position keystone UTP jack module shall terminate unshielded twisted 4 pair, 22 to 24 AWG, 100 ohm cable without the use of a punchdown tool. Optional tool ensures conductors are fully terminated. Universal label is colour-coded T568A and T568B wiring schemes.


Brand Name Panduit Sub Brand NetKey
Item Name Jack Module Type RJ-45, Unshielded, Lead Frame
Cable Type Category 5E Number of Positions 8
Termination Style Crimp Color Black
Cable Size 22-24 AWG Number of Contacts 8
For Use With Flat, Round and Solid Core Cable Standards ANSI/TIA-568-C.2, cULus Listed, TIA-1096-A, CSA Certified
Application Unshielded UPC 074983054978
