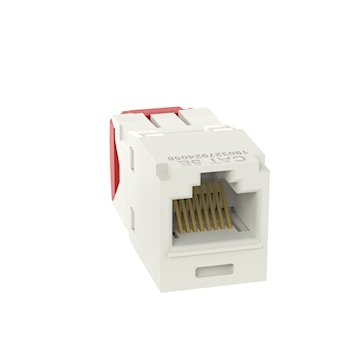

PANDUIT CJ5E88TGIW Mini-Com Category 5e UTP Jack Module Bus Jack, Unshielded, 8-Wire 8 Positions

Manufacturer #:CJ5E88TGIW
Documents Documents


The Mini-ComĀ® Cat 5e UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white.


Brand Name Panduit Sub Brand Mini-Com
Item Name Category 5e UTP Jack Module Type Bus Jack, Unshielded, 8-Wire
Cable Type Category 5e Number of Positions 8
Termination Style TG Color Off-White
Material ABS Dimensions 0.62 in W x 1-1/2 in D x 0.71 in H
Standards Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets ANSI/TIA-1096-A, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, Application Unshielded
UPC 074983395286
