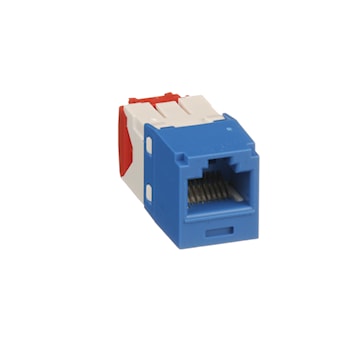

PANDUIT CJ5E88TGBU Mini-Com Cat 5e UTP Jack Module RJ45, Unshielded 8 Positions
pcccj5e88tgbu
PANDUIT CJ5E88TGBU Mini-Com Cat 5e UTP Jack Module RJ45, Unshielded 8 Positions
Manufacturer:PANDUIT
Manufacturer #:CJ5E88TGBU
Description
Mini-Com® TX5e™ UTP jack module. Category 5e/class D, 8 position, UTP jack module shall terminate 4 pair, 22 to 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be colour-coded red to designate category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.
Specifications
| Brand Name | Panduit | Sub Brand | Mini-Com |
| Item Name | Cat 5e UTP Jack Module | Type | RJ45, Unshielded |
| Cable Type | Category 5E | Number of Positions | 8 |
| Termination Style | Insulation Displacement | Color | Blue |
| Number of Contacts | 8 | Material | ABS |
| Dimensions | 0.58 in W x 1.24 in D x 0.64 in H | For Use With | Round and Solid Cables |
| Standards | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS | Application | Unshielded |
| UPC | 074983395248 |
