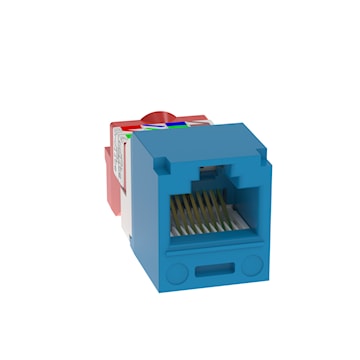

PANDUIT CJ5E88TBU Mini-Com UTP Jack Module RJ-45, Unshielded, TS Style 8 Positions

Manufacturer #:CJ5E88TBU
Documents Documents


Mini-Com® TX5e™ UTP Jack module. Category 5e/class-D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 to 22 AWG, 100¿ unshielded twisted pair cable and shall not require use of a punch down tool. UTP jack module shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be colour-coded red to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.


Brand Name Panduit Sub Brand Mini-Com
Item Name UTP Jack Module Type RJ-45, Unshielded, TS Style
Cable Type Category 5E Number of Positions 8
Termination Style Insulation Displacement Color Blue
Cable Size 22-24 AWG Number of Contacts 8
Material ABS Dimensions 0.62 in W x 1.43 in D x 0.71 in H
For Use With Round and Solid Core Cable, Litz Wire Conductor Standards Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Application Unshielded UPC 074983771400
