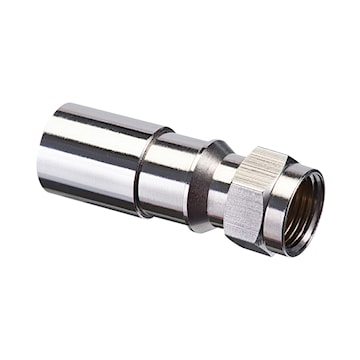

IDEAL INDUSTRIES 92-651 F-Connector Brass Nickel Plated

Manufacturer:IDEAL INDUSTRIES
Manufacturer #:92-651

Description

The IDEAL RTQ™ XR™ series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.All RTQ™ connectors require an industry standard 1/4” x 1/4” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal™ Pro or LinearX® compression tool.

Specifications

Brand Name Ideal Item Name F-Connector
Cable Type RG-6/6Q RTQ™ and Plenum 6/6Q RTQ™ Connection Type Compression
Color Nickel Plated Series TLC
Impedance 75 O Material Brass
Dimensions 1.29 in L x 0.49 in D x 0.44 in H UPC 783250926510
