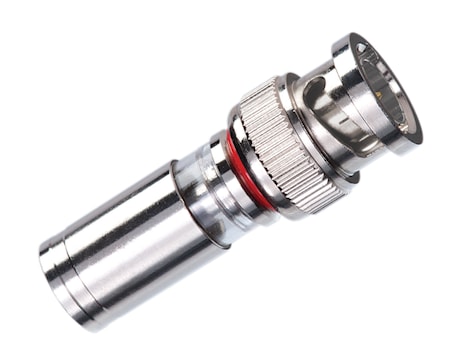

IDEAL INDUSTRIES 89-5047 Compression Connector BNC, Superior Corrosion-Resistance, Moisture Inhibiting Design Brass

Manufacturer:IDEAL INDUSTRIES
Manufacturer #:89-5047

Description

Installing one-piece compression BNC and right angle connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.With the patented InSITE™ Technology feature, now standard on all IDEAL BNC and right angle (90°) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all applications from CCTV to HD Video.The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.All IDEAL compression connectors require a 1/4” x 1/4” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.

Specifications

Brand Name Ideal Item Name Compression Connector
Type BNC, Superior Corrosion-Resistance, Moisture Inhibiting Design Cable Type RG-59 Coaxial Cable
Impedance 75 O Material Brass
Application For CCTV System Installations/Integrations And General Purpose Applications on RG 59 Cable UPC 783250689408
