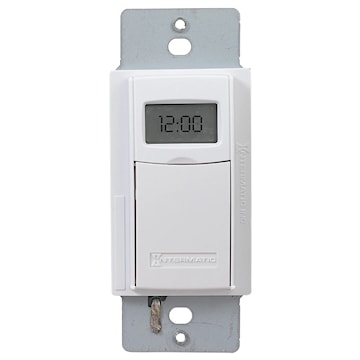

INTERMATIC INC EI400WC Digital Timer Decorator, Auto-Off, 1-Pole 20 A, White

Manufacturer:INTERMATIC INC
Manufacturer #:EI400WC
Documents Documents

Description

EI400 Series decorator digital auto-off-in-wall timer effectively replace 16 different spring-wound models. This timer provide flexibility, easy installation and silent operation. The timers provide a to-the-secondary accuracy time range from 1 second to 24 hours. True 3-way control allowing the load interval to be stopped/started using a standard mechanical remote switch. CR2 lithium battery provides a minimum of 2 years of operation without AC power. No neutral required. User settings stored in non-volatile memory. Low battery indicator. ADA Compliant. User-selectable advance end-of-interval visual or audible warning.


Programmable countdown time interval from one second to 24 hours

Settings stored in non-volatile memory

Optional audible and/or visual warning of impending load switch OFF

Lockable settings help avoid unintended changes

Single-pole or 3-way switch compatible installation

Incandescent/fluorescent/CFL/LED compatible

Isolated switch allows timer to be used with any load type including AC and DC loads

Replaceable CR2 lithium battery provides up to three years of operation

No neutral wire connection enables easy retrofitting and quicker installation

24-hour programming allows for continuous operation
