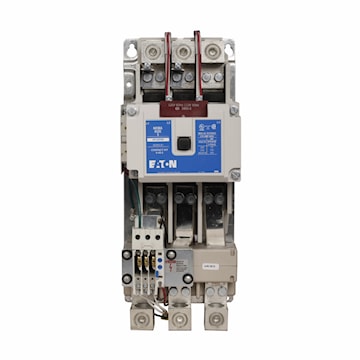

EATON INDUSTRIES (CANADA) CO AN16SN0AB NEMA Motor Control Starter Motor control starter Horizontal Mount
cuhan16sn0ab
EATON INDUSTRIES (CANADA) CO AN16SN0AB NEMA Motor Control Starter Motor control starter Horizontal Mount
Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:AN16SN0AB
Description
Eaton Freedom NEMA motor control starter, NEMA Freedom Series Non-Reversing Reset Overload Relay Starter, 75 hp at 208V, 100 hp at 240V, 200 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 270A, Three-pole, Size 5
Specifications
| Brand Name | Eaton | Item Name | NEMA Motor Control Starter |
| Type | Motor control starter | Coil Voltage | 120 V at 60 Hz, 110 V at 50 Hz |
| Amperage Rating | 270 A | Phase | 3 |
| HP Rating | 75 hp at 208 V, 100 hp at 240 V, 200 hp at 480/600 V | Number of Poles | 3 |
| Dimensions | 7.75 in L x 12 in W x 7.22 in D | Series/Model | Freedom |
| Frequency Rating | 50/60 Hz | NEMA Size | Size 5 |
| NEMA Size-OLD | Size 5 | Mounting Type | Horizontal |
| Standards | CSA Certified, UL Listed | Application | For Stationary Machinery and Equipment Outside Factory |
| UPC | 782113971889 |
