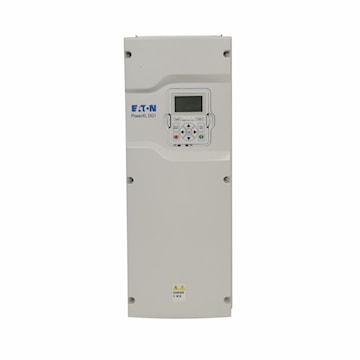

EATON DG1-32031FB-C21C DG1, 230V FR3, N1, 10HP(31A

Manufacturer:EATON
Manufacturer #:DG1-32031FB-C21C
Documents Documents

Description

Powerâ„¢ Series-1 General purpose variable frequency drive with LCD display, three-phase mains connection, coated printed circuit boards and internal RFI filter. Specifically designed for modern, sophisticated applications: In fact, energy-saving algorithms, high short-circuit values and a heavy-duty design all enable them to provide maximum efficiency, safety and reliability. IP21 or NEMA-1 degree of protection.

Specifications

Brand Name Eaton Item Name Variable Frequency Drive
Type Power XL Voltage Rating 230 V
Amperage Rating 31 A Power Rating 7.5 kW
HP Rating 10 hp Phase 3
Dimensions 27 x 12 x 16 in Series/Model Power
Display LCD (Graphical) Material Coated Board
Enclosure Type IP21, Type 1, Frame 3 Includes Brake Chopper
Standards UL 508C, EN ISO 13849-1, IEC 61508, cUL, UL Listed, EN 62061, C-Tick, CE Certified, RoHS Compliant, GoST-R Application Commercial, Institutional Buildings, Structures
UPC 786685886084
