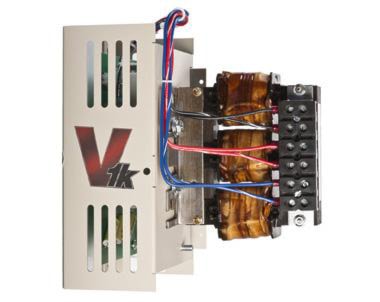

EATON V1K12A01 SPECIALITY FILTER DVDT
Description
DVDT Output Filter with peak voltages on a 480 V system can reach 1600 V, and on a 600 V system can reach 2100 V. These high peak voltages will cause a rapid breakdown of motor insulation, leading to motor failure. The V1K dV/dt filter is an output device that prevents voltage spikes from variable frequency drives (VFD) from exceeding 1000 V. The V1K minimizes these voltage wave amplitudes and slows the rate of voltage increases.
Specifications
Brand Name | TCI | Item Name | DV/DT Filter |
Voltage Rating | 208 - 600 V | Phase | 3 |
HP Rating | 7.5 hp | Series/Model | V1K |
Amperage Rating | 12 A | Frequency Rating | 60 Hz |
Dimensions | 9 in L x 5.5 in W x 10.05 in H | Enclosure Type | UL Type 1 |
Temperature Rating | 40 °C | For Use With | AF Drives |
Standards | cULus Listed | Application | For Submersible Pumps, Wastewater Pumping Stations, HVAC Cooling Systems, Process Automation Facilities, Agriculture Irrigation Systems |
