PANDUIT F1.5X3LG6 Panduct Wiring Duct Type F, Bottom Perforated Narrow Slotted Lead-Free PVC Light Gray 6 ft Lx 1-1/2 in W
pccf1.5x3lg6
PANDUIT F1.5X3LG6 Panduct Wiring Duct Type F, Bottom Perforated Narrow Slotted Lead-Free PVC Light Gray 6 ft Lx 1-1/2 in W
Manufacturer:PANDUIT
Manufacturer #:F1.5X3LG6
Description

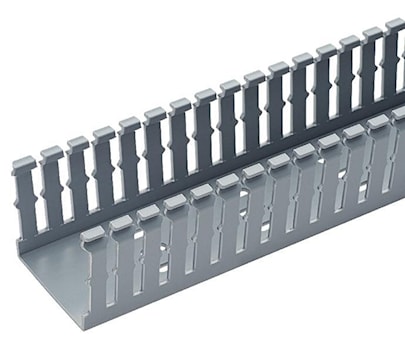

Panduct® Type-F narrow slot wiring duct narrow slot/finger design provides more slots to fit the spacing of high-density terminal blocks and other hardware. Material lead-free PVC. UL recognized continuous use temperature 122°F. UL 94 flammability rating of V-0. Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material. Provided with mounting holes.
Specifications
| Brand Name | Panduit | Sub Brand | Panduct |
| Item Name | Wiring Duct | Type | Type F, Bottom Perforated |
| Width | 1-1/2 in | Depth | 3 in |
| Length | 6 ft | Slot Type | Narrow Slotted |
| Slot Size | 5 mm | Thickness | 0.1 IN |
| Material | Lead-Free PVC | Color | Light Gray |
| Mounting Type | Standard Mounting Hole | UPC | 074983375370 |
Packages
| ea - ea | 6 - rarr_unit_1 | 120 - 120 |
