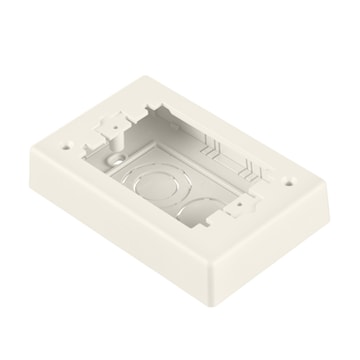

PANDUIT CANADA CORP. JBP1EWH Pan-Way Junction Box 1 Gangs Power Rated White
pccjbp1ewh
PANDUIT CANADA CORP. JBP1EWH Pan-Way Junction Box 1 Gangs Power Rated White
Manufacturer:PANDUIT CANADA CORP.
Manufacturer #:JBP1EWH
Description
The power rated single gang two-piece screw together outlet box. Box accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way® LD profile raceway. 5.19"L x 3.45"W x 1.75"H (131.9mm x 87.7mm x 44.4mm). Breakouts for 1/2", 3/4", or 1" diameter conduit. White.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Way |
| Item Name | Junction Box | Type | Power Rated |
| Length | 126.7 mm | Width | 83.8 mm |
| Number of Gangs | 1 | Material | PVC |
| Color | White | Gangable | Yes |
| Standards | NA | Application | Non-Locking Blade Plugs, 1-3/8 in Device Opening |
| UPC | 074983754793 |
