HUBBELL CANADA ULC GEMX-2 3/4" GEM ALUM OUTLET BODY X

Manufacturer:HUBBELL CANADA ULC
Manufacturer #:GEMX-2
Documents Documents

Description

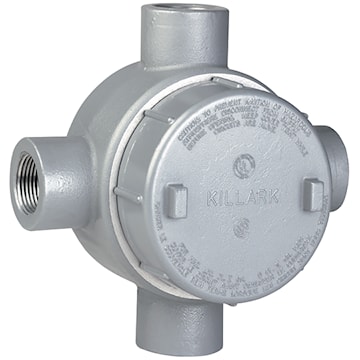

3/4" GEM Outlet Body X Type, Aluminum


Water shedding cover – suitable for wet locations when mounted in upright position

External cover threads on body protecting conductors from damage during pulling

No pinching of conductors during cover installation

Taper threaded hubs to provide ground continuity

Smooth integral hub bushing to protect conductor insulation when pulling

Internally threaded cover openings for additional wiring room

Covers furnished with boxes

Weather-resistant finish

Specifications

Brand Name Killark Sub Brand Killark
Item Name Type X Outlet Body with Cover Type Non-Reversing
Hub Size 3/4 in Trade Size 3/4 in
Cubic Capacity 8 in³ Material Copper-Free Aluminum
Finish Gray/Powder Epoxy Paint Series/Model GEM Series
Dimensions 4-7/16 in W x 3 in D x 4-7/16 in H Standards CSA Certified, UL Listed
Application For Use in Hazardous Locations UPC 783936210278
