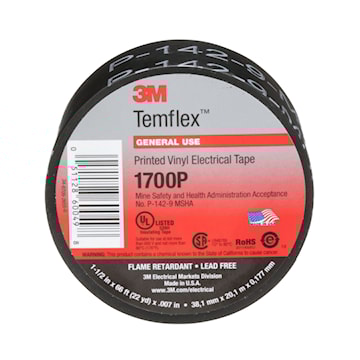

3M CANADA 1700P-1-1/2X66 Temflex™ Electrical Tape 66 ft Lx 1-1/2 in W PVC Black

Manufacturer:3M CANADA
Manufacturer #:1700P-1-1/2X66

Description

3M™ Temflex™ Vinyl Electrical Tape 1700P is a printed, polyvinyl chloride insulating tape with good quality mechanical strength and abrasion resistance. This general-purpose tape has excellent resistance to varying weather conditions and chemicals, is made for use above and below ground, and can operate in temperatures up to 80°C (176°F).

Specifications

Brand Name 3M Sub Brand Temflex™
Item Name Electrical Tape Type General Purpose, Insulating, Mining Grade Printed
Voltage Rating 600 VAC Width 1-1/2 in
Length 66 ft Thickness 7 mil
Backing Material PVC Adhesive Material Rubber Resin
Color Black Series/Model 1700P
Dielectric Strength 39.4 kV/mm Adhesion Strength 22 oz/in
Tensile Strength 17 lb/in² Temperature Rating 32 - 176 °F
Standards CSA Certified, MSHA Approved Application For Indoor/Outdoor, Above or Below Ground Applications
UPC 051128600498
