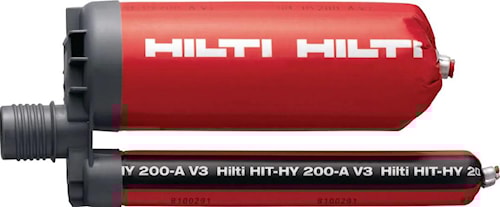

HILTI (CANADA) CORPORATION 2334274 Injectable mortar HY200-A V3 330/1/WH
hil2334274
HILTI (CANADA) CORPORATION 2334274 Injectable mortar HY200-A V3 330/1/WH
Manufacturer:HILTI (CANADA) CORPORATION
Manufacturer #:2334274
Description
Adhesive Anchor with ultimate-performance injectable hybrid mortar with approvals for anchoring structural steel baseplate and post-installed rebar connections.
Specifications
| Brand Name | Hilti | Item Name | Adhesive Anchor Kit |
| Type | 2-Component | Container Size Part A | 300 ml |
| Form | Paste | Color | Light Gray (Part A), White (Part B) |
| Series | HY-200-A | Composition | 40 - 60% Quartz (SiO2), 10 - 25% 2-Propenoic Acid, 2-Methyl-, 1,4-Butanediyl Ester, 5 - 10% 2-Propenoic Acid, 2-Methyl- Monoester with 1,2-Propanediol, 0.1 - 1% 1,1-(P-Tolylimino) Dipropan-2-ol (Part A), 40 - 60% Quartz (SiO2), 10 - 15% Dibenzoyl Peroxide |
| Density | 1.8 g/mL (Part A), 1.9 g/cm³ (Part B) | Odor | Characteristic |
| Flash Point | >109 °C | Boiling Point | 240 °C (Part A), 100 °C (Part B) |
| Temperature Rating | -40 to 248 °F | Includes | (1) Foil Pack, (1) Mixer, (1) Mixer Extension |
| Standards | DOT Approved, ICC-ES Approved | Application | Anchoring Structural Steel Connections, Fastening Secondary Steel Structures, Structural Concrete Connections with Post-installed Rebar |
