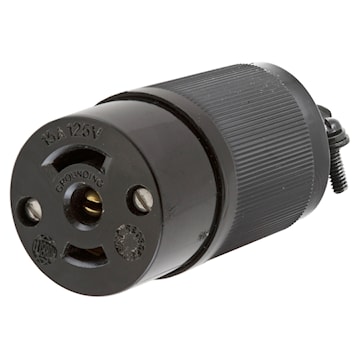

HUBBELL CANADA ULC HBL7593 Twist-Lock® Locking Connector Standard, Midget Locking 15 A, 125 V, 2 Ports 3 Conductors Black
hubhbl7593
HUBBELL CANADA ULC HBL7593 Twist-Lock® Locking Connector Standard, Midget Locking 15 A, 125 V, 2 Ports 3 Conductors Black
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL7593
Description
Hubbell TWIST-LOCK cable plugs and connectors are made of white nylon locking blade insert, black housing and 2 pieces screw cable clamp. Flanged inlet and outlet are made of white one-piece nylon. Box single/duplex receptacle are made of black or orange (isolated) thermoplastic. Full line of accessories like stainless steel and weatherproof cover plate. They follow NEMA and NON-NEMA lock coding version 1-2-3-4 pole, 20-30-50 amp, 125-250-277-347-480-600 volts.
Abuse resistant nylon housing
Phenolic body for high heat resistance
Angled body design for low profile in tight spaces
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Locking Connector | Type | Standard, Midget Locking |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 3 |
| Connection Type | Pressure Screw | Material | Composite |
| Color | Black | Number of Ports | 2 |
| Length | 1.17 in | Mounting | Cord |
| NEMA Rating | ML-2R | Temperature Rating | -25 to 75 °C with Impact, -40 to 75 °C without Impact |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Heavy Duty Industrial |
| UPC | 783585237749 |
