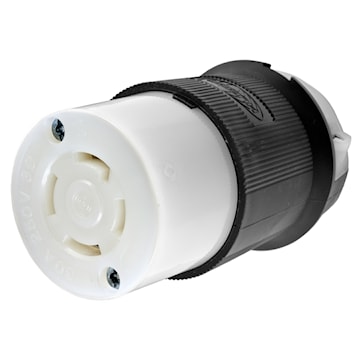

HUBBELL HBL2723 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 30 A, 250 VAC, 3 Ports 4 Conductors Black and White

Manufacturer #:HBL2723
Documents Documents


Twist-LockĀ® insulgrip connector body made of nylon with 3 pole, 4 wire grounding, 3 phase 250 V AC, 30 A. 0.35 to 1.15 inch cord diameter.


Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Insulgrip®
Item Name Locking Connector Type Female, Standard
Voltage Rating 250 VAC Amperage Rating 30 A
Conductor Size 12-8 AWG Number of Conductors 4
Connection Type Pressure Screw Material Composite
Color Black and White Number of Ports 3
Length 2.33 in Mounting Cord Mounted
NEMA Rating L15-30R Temperature Rating -25 to 75 °C with Impact, -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Heavy Duty Industrial
UPC 783585039251
