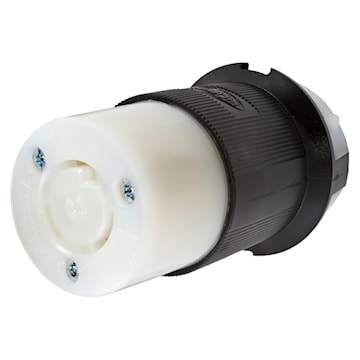

HUBBELL HBL2323 Twist-Lock®, Insulgrip® Locking Connector Female, Standard 20 A, 250 V, 2 Ports 3 Conductors Black and White

Manufacturer #:HBL2323
Documents Documents


Twist-LockĀ® insulgrip connector body made of nylon with 2 pole, 3 wire grounding, 250 V AC, 20 A. 0.36 to 0.93 inch cord diameter.


Brand Name Hubbell Wiring Device Kellems Sub Brand Twist-Lock®, Insulgrip®
Item Name Locking Connector Type Female, Standard
Voltage Rating 250 V Amperage Rating 20 A
Conductor Size 12-10 AWG Number of Conductors 3
Connection Type Pressure Screw Material Composite
Color Black and White Number of Ports 2
Length 2.26 in Mounting Cord Mounted
NEMA Rating L6-20R Temperature Rating -25 to 75 °C with Impact, -40 to 75 °C without Impact
Standards UL 498, NEMA WD-1, WD-5 Application Heavy Duty Industrial
UPC 783585037844
