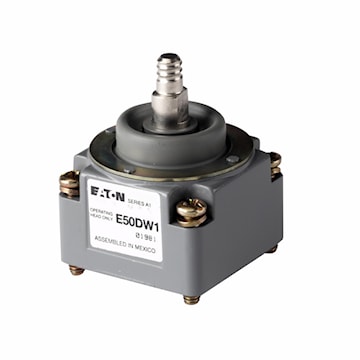

EATON E50DW1 Limit Switch Wobble Head Spring Return 2 in-lb for Heavy Duty Limit Switch
cuhe50dw1
EATON E50DW1 Limit Switch Wobble Head Spring Return 2 in-lb for Heavy Duty Limit Switch
Manufacturer:EATON
Manufacturer #:E50DW1
Description
Eaton E50 NEMA heavy duty plug-in limit switch, Standard duty, wobble head, spring return, Die cast zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, 14° to 201°F (-10° to 94°C), E50
Specifications
| Brand Name | Cutler Hammer | Item Name | Limit Switch Wobble Head |
| Temperature Rating | -40 to 201 °F | Actuator | Spring Return |
| NEMA Rating | NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 | Dimensions | 1.8500 IN X 1.5400 IN X 1.7800 IN |
| Type | Standard Duty | Series/Model | E50 |
| Travel | 10° Operating Travel, 6° Reset Travel, 15° Total Travel | Operating Force | 2 in-lb |
| Degree of Protection | IP67 | Material | Die-Cast Zinc |
| For Use With | Heavy Duty Limit Switch | Standards | CSA Certified, UL Listed |
| UPC | 782113290669 |
