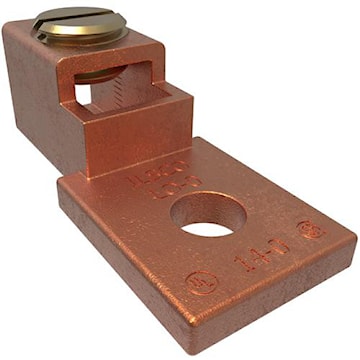

ILSCO LO-0 ClearChoice Mechanical Lug 14-1/0 AWG Electrolytic Copper

Manufacturer:ILSCO
Manufacturer #:LO-0

Description

One conductor, once hole copper mechanical lug. Manufactured from electrolytic seamless copper tubing. Compact design, re-usable. Provides maximum conductivity and strength. Saves space and reduces installation time. Ensures reliability for copper conductor.

Specifications

Brand Name Ilsco Sub Brand ClearChoice
Item Name Mechanical Lug Type Slotted Hex
Conductor Type Copper Conductor Size 14-1/0 AWG
Number of Bolt Holes 1 Material Electrolytic Copper
Series LO Number of Conductors 1
Bolt Size 1/4 in Tongue Size 27/32 in L
Voltage Rating 2 kV Mounting Hole Size 9/32 in
Temperature Rating 90 °C Finish NA
Color Copper Dimensions 1-3/4 in L x 3/4 in W x 11/16 in H
Standards UL 453G Listed, CSA LR-29601 Certified, RoHS Compliant, UL 486A/B, UL File Number E6207 Application For Terminating Connector and for use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
UPC 783669567724
