ACUITY BRANDS LIGHTING CANADA 263LTE ELM6L, 120-347VAC, LITHIUM IRON PHOSPHAT
Description

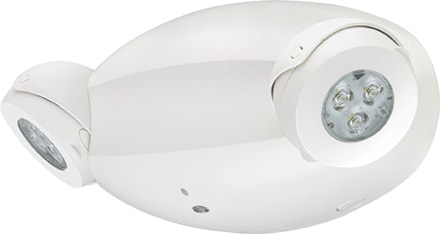

The ELM6L from Lithonia Lighting® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination with constant light output when there is a loss of power. Equipped with six high performance LEDs and full range swivel lamp heads it is ideal for a wide-range of mounting height applications (from 7.5' to 30+'), requiring aimable optics. The linear pattern provides wide uniform distributions that deliver broad spacing up to 98' and low max to min ratios that far exceed code requirements.
Specifications
| Brand Name | Lithonia Lighting | Item Name | Emergency Lighting Unit |
| Type | 2-Head, Remote | Housing Color | White |
| Lamp Wattage | 10.6 W | Fixture Wattage | 2.78/4.7/5.95 W |
| Lamp Type | 1100 lm LED | Battery Type | Lithium Iron Phosphate |
| Dimensions | 13-3/8 in L x 3-45/64 in D x 5-15/16 in H | Mounting | Surface |
| Series/Model | ELM6L | Housing Material | Thermoplastic |
| Input Voltage | 120 - 347 V | Number of Lamps | 2 |
| Warranty | 5 yr | Standards | BAA, CA Title 20 Compliant, cUL Listed |
| UPC | 191723916454 |
