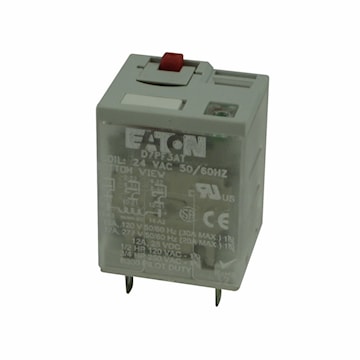

EATON INDUSTRIES (CANADA) CO D7PF3AT1 General Purpose Relay 300 V, DIN Rail/Panel Mount
cuhd7pf3at1
EATON INDUSTRIES (CANADA) CO D7PF3AT1 General Purpose Relay 300 V, DIN Rail/Panel Mount
Price
$83.51
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:EATON INDUSTRIES (CANADA) CO
Manufacturer #:D7PF3AT1
Description
D7 Series General Purpose Plug-In Relay, Full featured cover, 24 Vdc coil, 400 Ohms resistance, Plug-in terminal, 3PDT contact configuration, 15A contact rating, Silver alloy contacts, IP40 enclosure_
Specifications
| Brand Name | Eaton | Item Name | General Purpose Relay |
| Type | Ice Cube, Full Featured | Voltage Rating | 300 V |
| Coil Rating | 24 VDC | Contact Rating | 15 A |
| Contact Configuration | 3PDT | Number of Poles | 3 |
| Terminal Connection | Plug-in | Series/Model | D7PF |
| Amperage Rating | 15 A at 120 VAC, 12 A at 277 VAC/28 VDC | Frequency Rating | 50/60 Hz |
| HP Rating | 1/2 hp at 120 VAC, 3/4 hp at 250 VAC | Power Rating | 1.4 W |
| Contact Material | Silver Alloy | Dielectric Strength | 2500 VAC Between Coil and Contact, 2500 VAC Between Poles |
| Resistance | 400 O | Operating Cycles | 10000000 Mechanical, 200000 Electrical |
| Operate Time | 20 Millisecond | Indicator Type | Mechanical Flag |
| Dimensions | 1.4 in L x 1.2 in W x 1.1 in H | Material | Polycarbonate |
| Mounting Type | DIN Rail/Panel | Degree of Protection | IP40 |
| Temperature Rating | -40 to 131 °F | Environmental Conditions | -40 to 185 °F Storage |
| Standards | UL E37317, E65657, CSA LR217069, LR217017, cRUus, RoHS Compliant, CE | Application | For Field Service Personnel to Test Control Circuits |
| UPC | 782116484935 |
