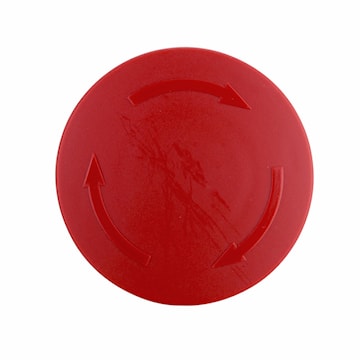

EATON C22-PVT45P-K11 Emergency Stop Switch Non-Illuminated Red Operator, Silver Bezel

Manufacturer #:C22-PVT45P-K11


C22 emergency stops are a durable and reliable solution to a variety of e-stop applications. This compact e-stop, available as twist-to release and keyed-release, is a simple product that eliminates the need for self monitoring contact blocks, all while still meeting almost all of the industry safety standards. Available in both twist release and keyed-release with either 45 mm or 60 mm operators.


Brand Name Eaton Item Name Emergency Stop Switch
Type Non-Illuminated Size 45 mm
Action Maintained Actuator Type 60 mm Twist-Release Button
Contact Configuration 1 NO, 1 NC Dimensions 1.7700 IN X 1.7700 IN X 3.6600 IN
Color Red Operator, Silver Bezel Series/Model C22
Standards UL Listed, CSA Certified, IEC 60947, EN 60947, DIN VDE 0600 Application For Automation and Logic Control Equipment
UPC 015081194289
