FESTO INC 8066401 DFPD-N-10-RP-90-RD-F04 semi-rotary drive

Price $154.57 / EA
Inventory
Available for backorder
0for pick up at Burlington
  • Dixon Stoney Creek 0
  • Dixon Sudbury 0
  • Dixon SSM 0
  • Dixon Timmins 0
  • Dixon North Bay 0
  • Dixon Thunder Bay 0
  • Dixon Dryden 0
  • Dixon Concord 0
  • Dixon Cambridge 0
  • Dixon Mississauga 0
  • Dixon Burlington 0
Qty EA
Manufacturer:FESTO INC
Manufacturer #:8066401
Documents Documents

Description

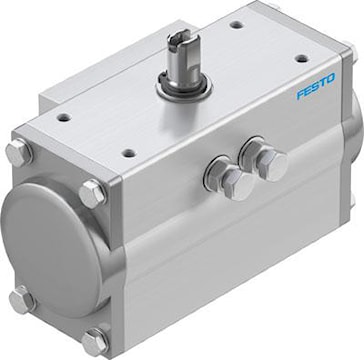

semi-rotary drive DFPD-N-10-RP-90-RD-F04 double-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to fitting ISO 5211, NPT control air connection thread type. Size of actuator=10, Flange hole pattern=F04, Swivel angle=90 deg, End-position adjustment range at 0°=-5 - 5 deg, End-position adjusting range at nominal swivel angle=-5 - 5 deg
