hubrsd115

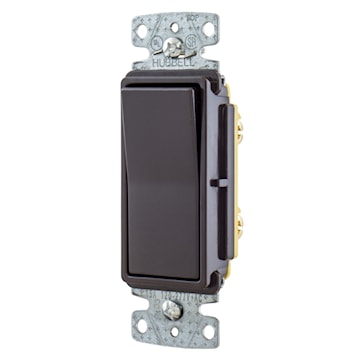

HUBBELL CANADA ULC RSD115 AC Decorator Switches Standard, General Purpose Rocker Switch 120/277 V, 15 A, Positive Snap Brown
hubrsd115
HUBBELL CANADA ULC RSD115 AC Decorator Switches Standard, General Purpose Rocker Switch 120/277 V, 15 A, Positive Snap Brown
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:RSD115
Description
tradeSELECT® Decorator single-pole rocker switch. Self-grounding, push and back and side wire termination. Smooth, quiet rocker. Ultrasonically welded cover and base. UL listed E3896, CSA certified. Operating temperature -20 to 60°C.
Smooth, quiet rocker
Self-grounding feature is standard
Ultrasonically welded cover and base
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | AC Decorator Switches |
| Item Name | Rocker Switch | Type | Standard, General Purpose |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 15 A |
| Contact Configuration | 2 Position | Number of Poles | 1 |
| Number of Positions | 2 | Power Rating | 4155 W |
| Contact Rating | Per UL 20 | Actuator | Rocker |
| Switch Function | Positive Snap | Mounting | Screw Mount |
| Connection | Push Wired, Back and Side Wired | Terminal Type | Screw |
| Enclosure Standard | None | Temperature Rating | 60 °C Maximum Continuous, -20 °C Minimum without Impact |
| Material | Composite | Color | Brown |
| Operating Cycles | 30000 | Environmental Conditions | Indoor Dry unless protected by additional means |
| Standards | NEMA WD-1, UL20 Listed, CSA Certified | Application | Residential Wiring Devices |
| UPC | 883778101113 |
