hubrrd15sitr

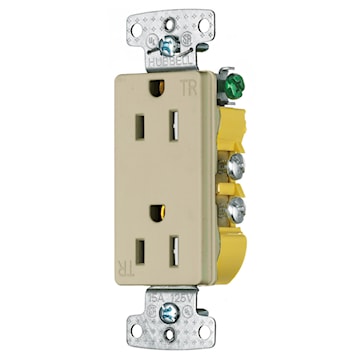

HUBBELL RRD15SITR Straight Blade Devices Decorator, Tamper-Resistant Straight Blade Duplex Receptacle 15 A, 5-15R Ivory
hubrrd15sitr
HUBBELL RRD15SITR Straight Blade Devices Decorator, Tamper-Resistant Straight Blade Duplex Receptacle 15 A, 5-15R Ivory
Manufacturer:HUBBELL
Manufacturer #:RRD15SITR
Description
tradeSELECT® Self-grounding decorator duplex receptacle. Tamper-resistant model. NEMA-5-15R. Push and side-wired.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Straight Blade |
| Item Name | Straight Blade Duplex Receptacle | Type | Decorator, Tamper-Resistant |
| Grade | Residential | Size | Standard Sized |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Wattage | 1875 W | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Configuration | 5-15R |
| Connection Type | Push and Side Wire | NEMA Rating | 5-15R |
| Conductor Size | 14-12 AWG | Material | Thermoplastic |
| Color | Ivory | Frequency Rating | 50/60 Hz |
| Phase | 1 | Terminal Connection | Screw |
| Grounding | Self | Mounting Type | Screw |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | NEMA WD-1 and WD-5, UL 498 |
| Application | Residential | UPC | 883778301667 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 |
