ilspbts3750
ILSCO CANADA NEWCO ULC PBTS-3-750 INSUL AL MECH (3) 750-250 SGLT UL CSA
ilspbts3750
ILSCO CANADA NEWCO ULC PBTS-3-750 INSUL AL MECH (3) 750-250 SGLT UL CSA
Price
$168.60
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:PBTS-3-750
Description

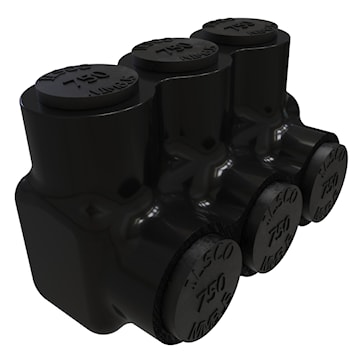

Nimbus Insulated Multi-Tap Connector, Single Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 250 kcmil, Contains DE-OX®, 3 conductors, 3 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Black, 1 poles,
Specifications
| Brand Name | Ilsco | Sub Brand | Nimbus® |
| Type | One Side, PBTS, Insulated | Voltage Rating | 600 V |
| Number of Ports | 3 | Number of Conductors | 3 |
| Material | Aluminum | Conductor Type | Stranded |
| Connection Type | Mechanical | Temperature Rating | 90 °C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Connecting Tap |
| UPC | 783669080568 |
